Buffalo Tubeaxial Fan (industrial tubeaxial blower fan)

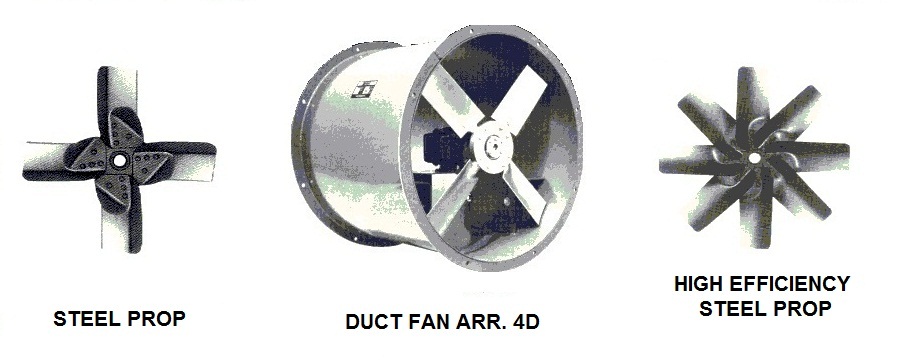

Tubeaxial fan: axial flow through fan designed for low pressure building ventilation and industrial process application. Uses include heat, smoke, and fume removal; process ventilation and process air handling; proces drying with ambient or preheated up to 650 F air; comfort process cooling and general ventilation of buildngs. Available in direct drive arrangements 4/4M/4V/4D/4R and corresponding belt drive arrangements 9/9M/9V/9D/9R. Capacities: to 350,000 CFM. Static pressure to 4 inches water gauge.

Aluminum wheel, Steel wheel, or Alloy wheel: tubeaxial fan for non-sparking x-proof applications is supplied in AMCA A, AMCA B, or AMCA C spark resistant construction in all aluminum welded construction, or in monel. For corrosive environment tubeaxial fan is supplied in 304 SS, 316 SS, or 316 L stainless steel construction. For chemical process applications tubeaxial fan is available in fiber reinforced plastic (FRP) construction, or in polypropylene construction, or in plastic. For high temperature applications up to 650 F tubeaxial fan is supplied typically in steel welded construction.

Inlet flanges, outlet flanges, companion flanges: continuosly welded to match ANSI class 125/150, DIN, ISO, or custom hole pattern.

Shaft seals: tubeaxial shafting is straightened to close tolerance to minimize "run-out" and ensure smooth operation. Bearings are of pillow plock, or flaged bearings. Ceramic shaft seal and lubricated shaft seals (Buna, Teflon, Viton) are standard. Red silicone gasketing is used on high temperature applications.

Heat fan construction up to 850 F: includes high temperature paint, shaft cooler, shaft and bearing tunel cooling auxiliary blower (optional), insulated shaft and bearing tunel, steel, or alloy wheel.

Cladding for sound attenuation and silencers: cladding consists of 2 inches mineral-wool insulation covered with a welded steel jacket. Acoustic cloth jackets are available as inexpensive alternative. Inlet silencers/outlet silencers are supplied with matching flanges.

Inlet vane damper assembly: external inlet vane damper is provided for precise air volume control.

Standard accessories:flash / raised access door, inspection port, drain and plug, 3-way drain, mount feet, belt guard, motor cover, spring vibration isolation, rubber-in-share (RIS) vibration isolation, vibrating pads, electrical actuators, pneumatic actuators.

Roof mount accessories: roof curb mount cap, roof curb, weather band, weather shroud with integral flap damper, butterfly damper assembly, magnetic latches.

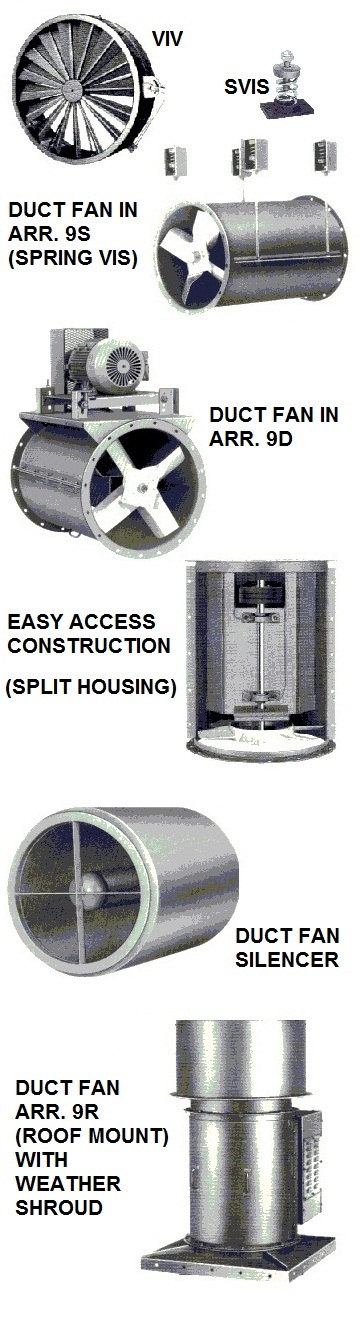

Easy Access Construction: for wash-down duty applications: tube casing is of split open hinged construction and allows for direct access to the wheel-shaft-bearings and drive.

Direct Gas-Fired Air Heating Systems are a class of equipment utilized primarily in industrial and commercial environments to provide for worker comfort. To a lesser extent, these systems are used to condition air for process and finishing applications such as material drying and paint curing. These systems have gained widespread use due to the fact that they are inexpensive to build, maintain, and operate compared to other furnace types of comparable heating capacity. The key advantages are simplicity and efficiency. No heat exchanger is required. This eliminates component installation and maintenance costs. With no heat transfer losses, the unit is nearly 100% efficient. The primary disadvantage is the introduction of waste products into the airstream. For this reason, both ANSI Z83.4/CSA3.7 and ANSI Z83.18 standards state: “Heaters covered by this standard are intended for use in industrial and commercial applications.” ANSI Z83.18 states further that: “Heaters covered by this standard are not intended for use in any area containing sleeping quarters." Carbon Monoxide and Nitrogen Dioxide are the primary pollutants. These are limited to no more than 5.0 PPM for CO and 0.5 PPM NOX, a fraction of OSHA allowable Permissible Exposure Limits(PEL’s).  In pactice this sulfur removal process requires a gas-tight, zero leakage, high temperature and high pressure blower for intermittent duty that must handle toxic gases and must be capable of being brought on line immediately upon demand. To do this the following features on the blower must be provided:

- Double welded casing construction;
- Steam flows between the housing walls to maintain a constant 285 F gas temperature inside the fan (because below 285 F sulfur will change from a gaseous to a solid state and will "freeze" to the blower surfaces causing damage or destruction);
- A mechanical shaft seal with heat tracing and purge by air or nitrogen;
- To assure tight tolerances between the shaft and shaft seal, the housing should be supported at the centerline, and grows concentric to the fan shaft when exposed to heat.: since this support isolates housing from the drive and mounting bases, housing thermal growth doesn't cause forces to be applied to these bases.
- To prevent the shaft from taking a permanent set when the blower is idle but still exposed to the high temperature, a turning gear is provided to keep the blower rotating at a very slow speed of 25 - 40 RPM; alternatively a VFD speed control can be used
