Custom engineered multi-stage centrifugal blowers and exhaust ventilating equipment, agitation and aeration blowers for industrial and wastewater ventilation. Supply Buffalo forge blowers, vertically split blowers, cast iron and cast aluminum exhausters, cast iron blowers and exhausters for air and gas handling applications. Provide acid resistant blowers, heat resistant blowers, corrosion resistant blowers.

OLEG FAN BLOWER

Industrial radial blower

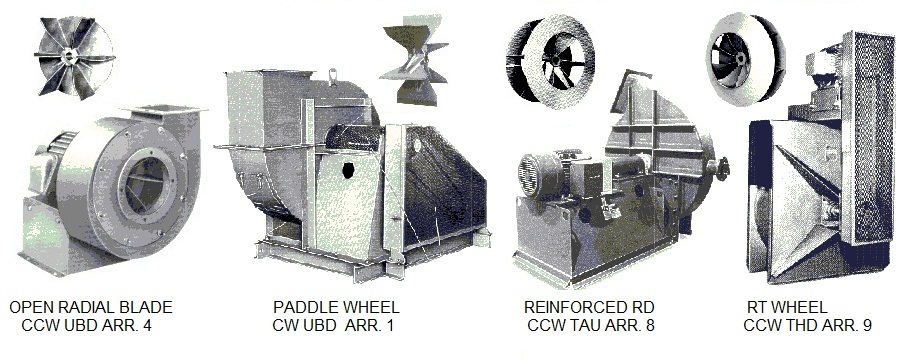

RBO, RD, BP, LS, XO, DH, RTS, Radial Tip: industrial radial blade blowers are supplied in welded heavy gauge steel construction to prevent flexing at high pressure. Available in direct drive arrangements 4/4V/4H/7/8 and belt drive arrangements 1/3/9/10. Arr. 10 blowers are known as ventilating sets (vent sets). Available in single width single inlet (SWSI), or double width double inlet (DWDI). Capacities: to 500,000 CFM. Static pressure up to 100 inches water gauge depending on the class of construction. Typical class of construction is Class 1, 2, 3, 4, 5.

Aluminum wheel, Steel wheel, or Alloy wheel: industrial radial blowers and fans are supplied with aluminum wheel or corten wheel to meet requirements of AMCA A, and AMCA B spark resistant construction. Mild steel wheels are of all welded construction. They are used on pressure applications, material handling applications (plastic scrap, paper trim, granular material, low density bulk material) where wheel is reinforced with support gussets, or made of abraision resistant construction, or furnished of high strenght steel. Stainless steel wheel in 304 SS, 316 SS, 316 SS, 2205 SS are supplied for corrosive applications, or high temeparature applications. The pressure curve remains stable from fully open to fully closed position.

Inlet flanges, outlet flanges, companion flanges: continuosly welded to match ANSI class 125/150, DIN, ISO, or custom hole pattern.

Shaft seal and low leakage construction: shafting is straightened to close tolerance to minimize "run-out" and ensure smooth operation. Teflon shaft seal, ceramic shaft seal and lubricated shaft seals (Buna, Teflon, Viton) are standard. Red silicone gasketing is provided for low leakage construction and for high temperature construction. Heavy-duty spherical roller bearings are standard.

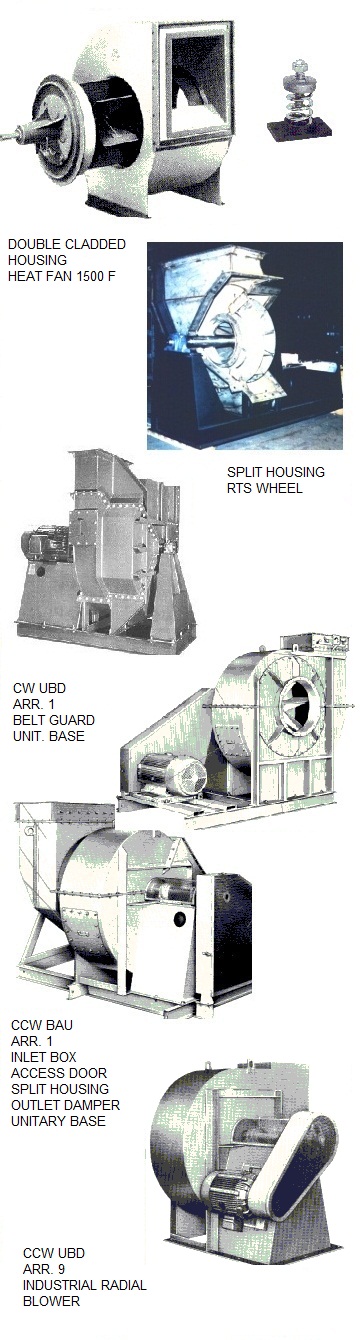

Heat fan construction up to 1500 F: includes high temperature paint (up to 1000 F), special alloy construction, shaft cooler, shaft-cooler guard, and steel wheel, or alloy wheel, with steel, or alloy housing.

Cladding for sound attenuation and silencers: cladding consists of 2 inches mineral-wool insulation covered with a welded steel jacket. As an inexpensive alternative is offered slide-on acoustic cloth jackets. Inlet silencer/outlet silencer are supplied with matching flanges for further attenuation of the noise level.

Inlet filter assemblies: cell type, 1 inch, or 2 inch filters are available with filter cabinet to be mounted at fan inlet. Bird guard, insect screen and weather hood are optional accessories with inlet filter package.

Standard accessories:flash / raised access door, inspection port, drain and plug, unitary base, shaft and bearing guard, belt guard, motor cover, spring vibration isolation, rubber-in-share (RIS) vibration isolation, vibrating pads, outlet damper, inlet vane damper, external inlet vane damper, evase, electrical / pneumatic actuators.

Direct-fired pressurization equipment is capable of delivering plenty of ventilation to a facility when it is configured as the 80/20 system. Infrared systems, however, may need to be supplemented with a separate ventilation system. Gas-fired pressurization systems offer good solutions to heating large structures such as warehouses and manufacturing facilities. Situations that require significant ventilation favor pressurization air handlers as do facilities that generate dust, mists, and other contaminants. Cleaner environments with less intensive ventilation needs would do well to go with the infrared radiant heating approach. In very cold climates, it might be beneficial to go with a hybrid solution using radiant heat at the perimeter as the primary heating source and placing pressurization units at the center of the facility for ventilation and for pressurization when doors are open. Proper ventilation requires that there be a movement or circulation of the air within the space and that the temperature and humidity be maintained within a range that allows adequate evaporation of perspiration from the skin. It was formerly believed that the discomfort, headache, and lethargy commonly associated with poor ventilation were caused entirely by the increase in the amount of carbon dioxide and the decrease in the oxygen content of the air. There is evidence to show, however, that the deleterious effects result largely from interference with the heat-regulating mechanism of the body. Lack of air currents and the increase in relative humidity and temperature (especially noticeable in crowded, poorly ventilated places) prevent normal evaporation of perspiration and loss of heat from the surface of the skin.
